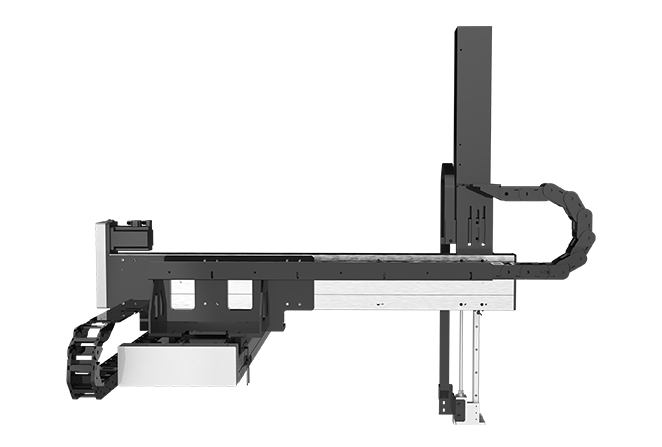

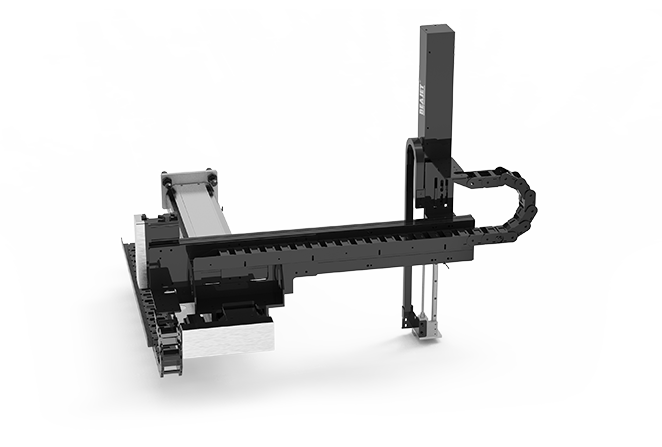

P54M/P74M Three-Axis Module Label Applicator
| Three-Axis Module Label Applicator：P54M、P74M: Can realize the labeling of each product within a region, can be free combination Product labeling coordinates, the fastest speed can reach 15 times/min |
Working state： Through serial communication, to real-time control the specific location of the label, according to the real-time requirements, at willSet labeling at any location within the module. | |

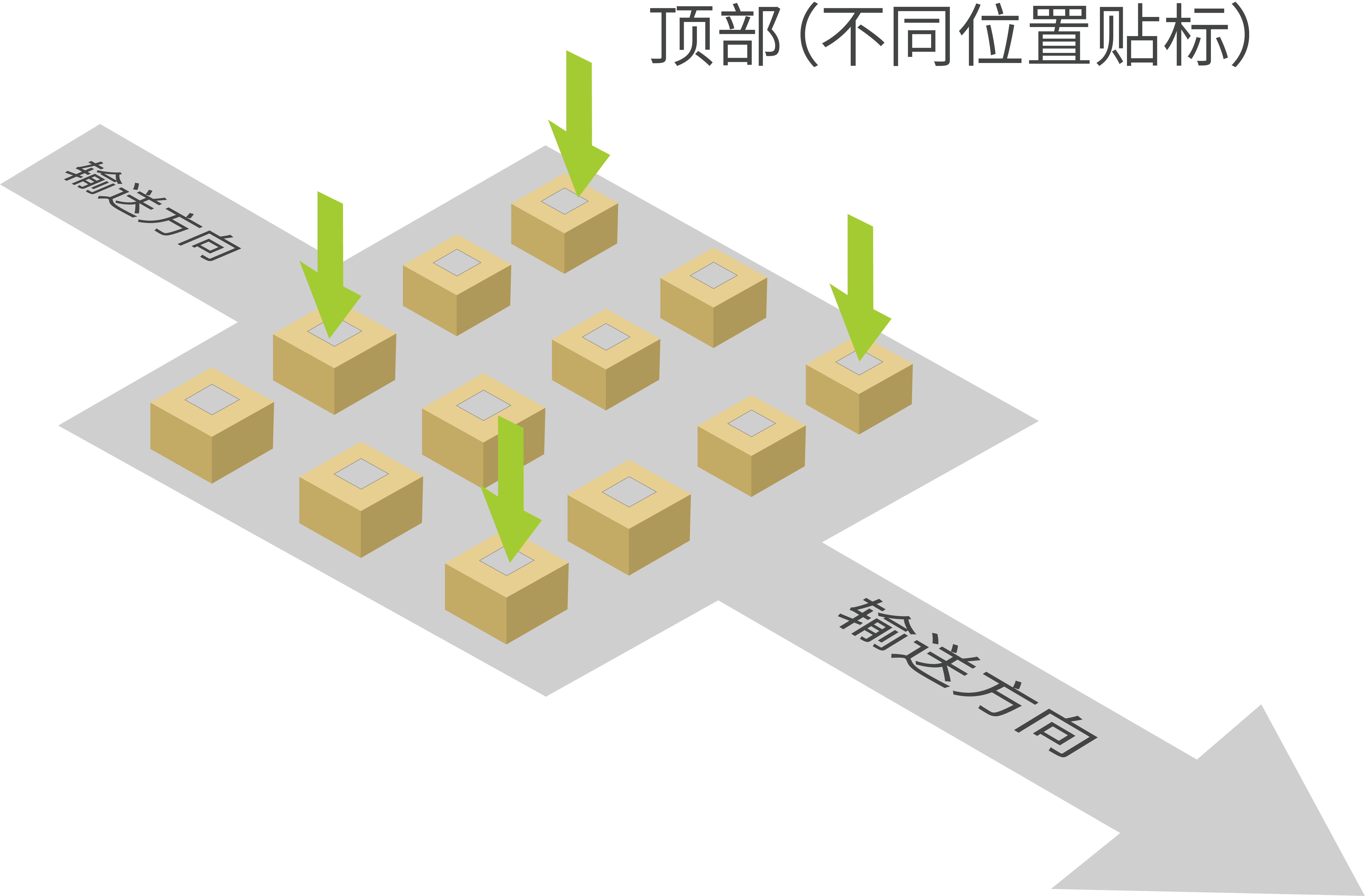

The line edge corresponds to the labeling position：
| Equipment can be veneer： |

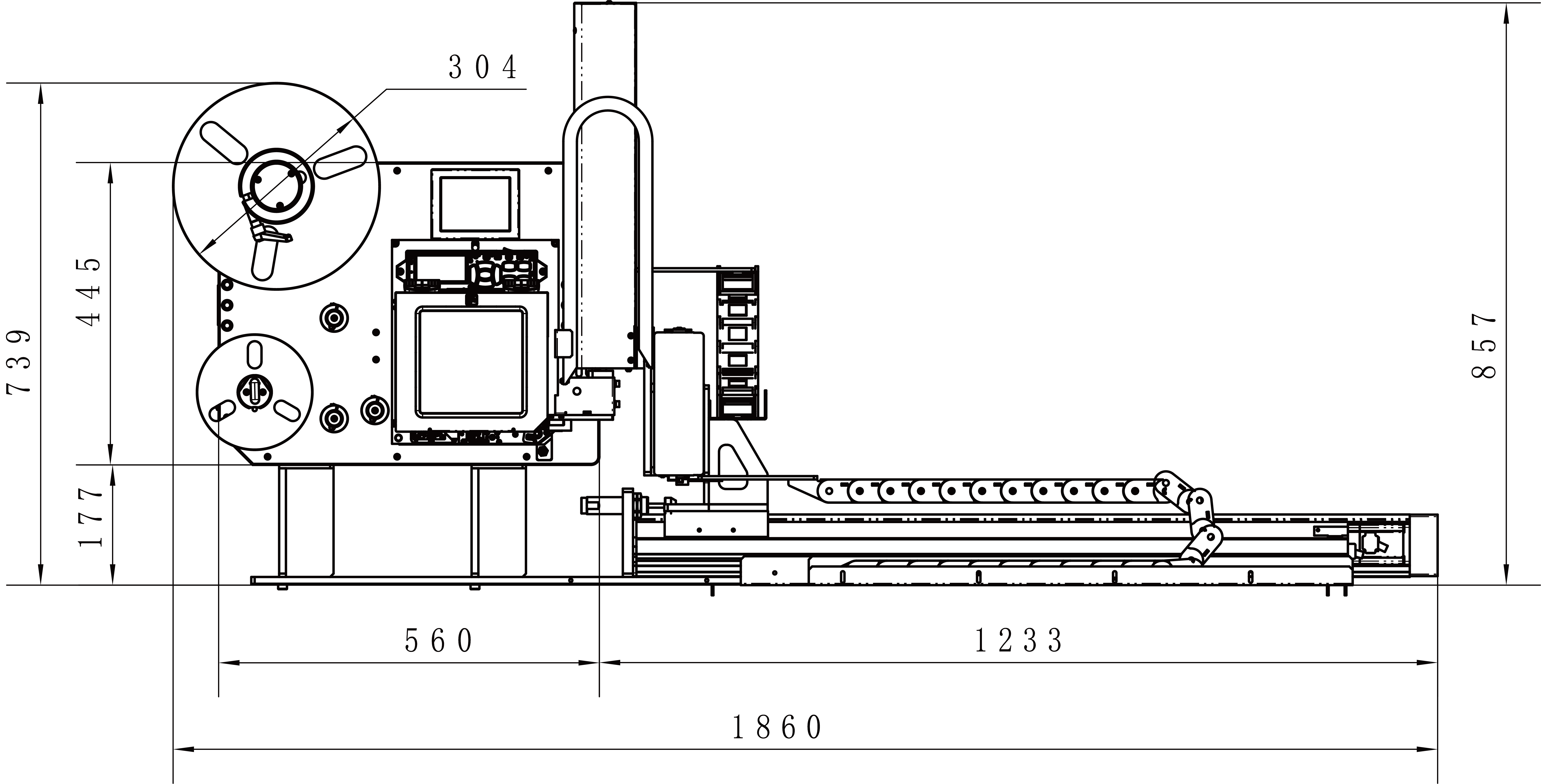

Front dimension：
|

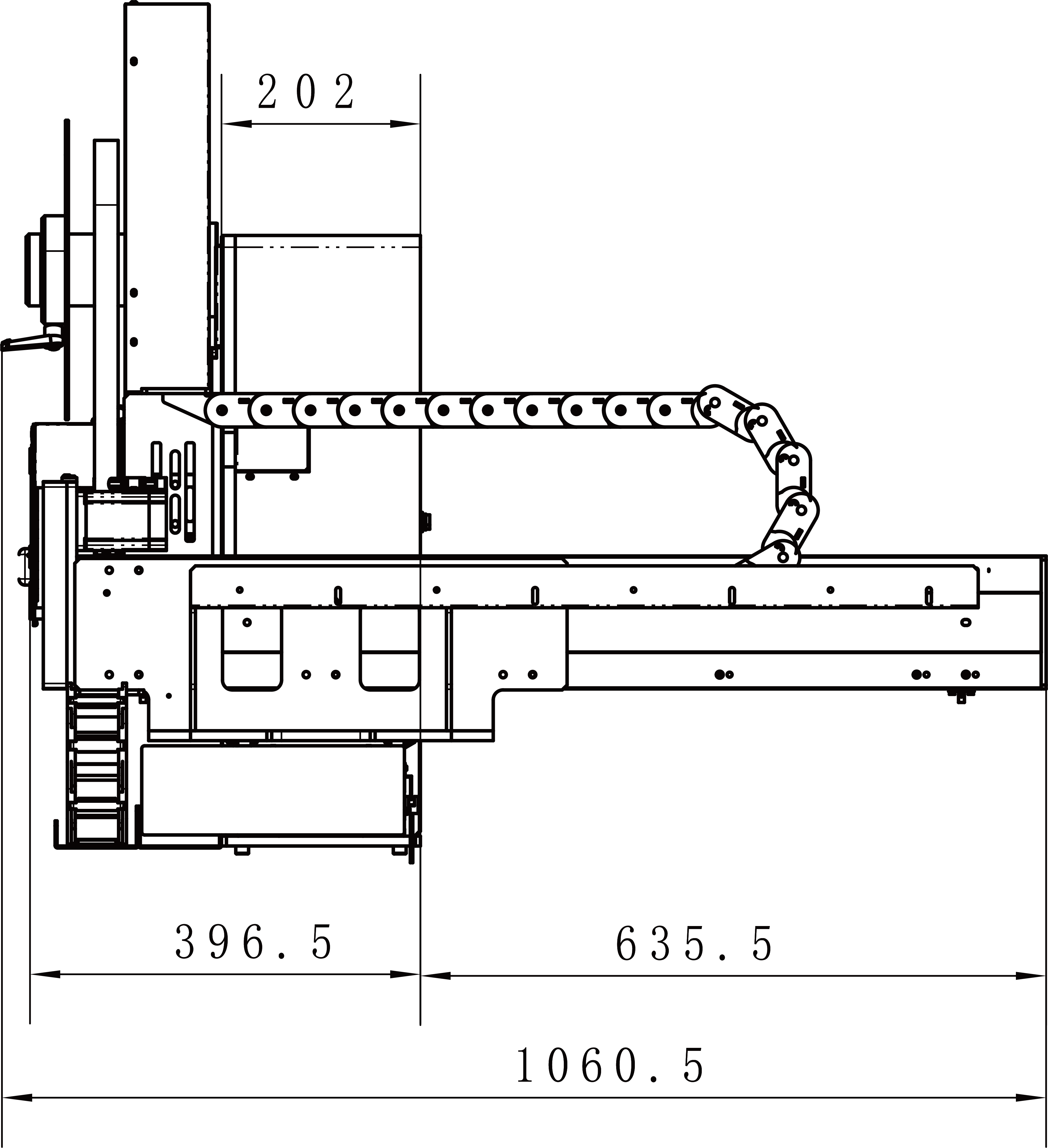

Side dimension：
|
| Three-Axis Module Label Applicator：P54M、P74M: Can realize the labeling of each product within a region, can be free combination Product labeling coordinates, the fastest speed can reach 15 times/min |
Working state： Through serial communication, to real-time control the specific location of the label, according to the real-time requirements, at willSet labeling at any location within the module. | |
The line edge corresponds to the labeling position：
| Equipment can be veneer： |
Front dimension：
|
Side dimension：
|
| Labeling method： | Three-Axis Module Label Applicator |
| Labeling arm model： | P54M、P74M |
| Labeling speed（or high-speed cylinders）： | 15 sheets/min |
| Labeling width： | X600mm，Y600mm，Z320mm |
| Labeling accuracy： | ±0.7mm |
| Size（fuselage+labeling arm）： | 1860*1060.5*857mm |
| Weight： | 90KG |
Accuracy: ±0.5 mm
Accuracy: ±1 mm
Accuracy: ±2mm
Accuracy: ±1mm
Accuracy: ±1 mm
Accuracy: ±1mm
Accuracy: ±0.5mm
Accuracy: ±1mm
