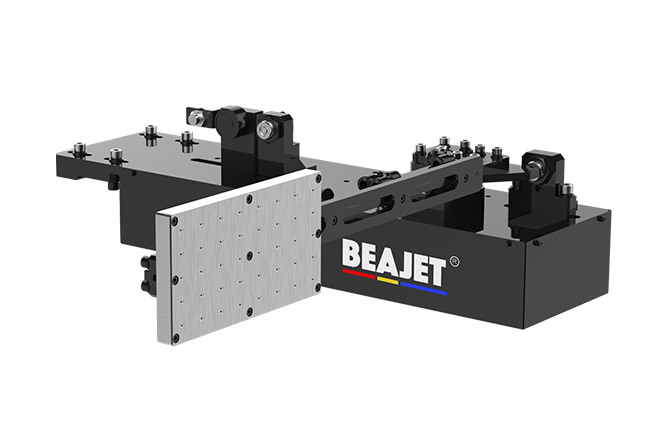

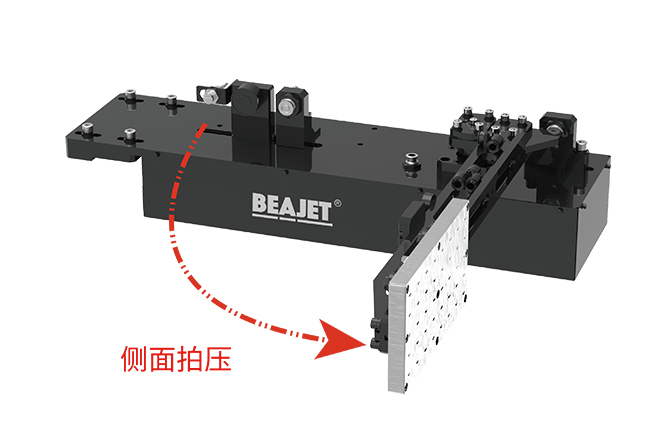

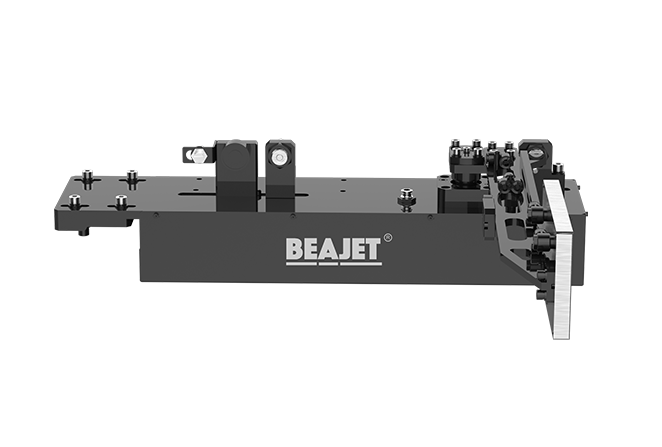

| Swing Applicator：P54B、P74B Products can be realized in the direction of the front and back and side labeling The fastest is 20 sheets per minute |
Working state: Through the external sensor, I/O point input signal, control device printing label. The front, rear and side labeling positions can be freely selected upon request. |  |

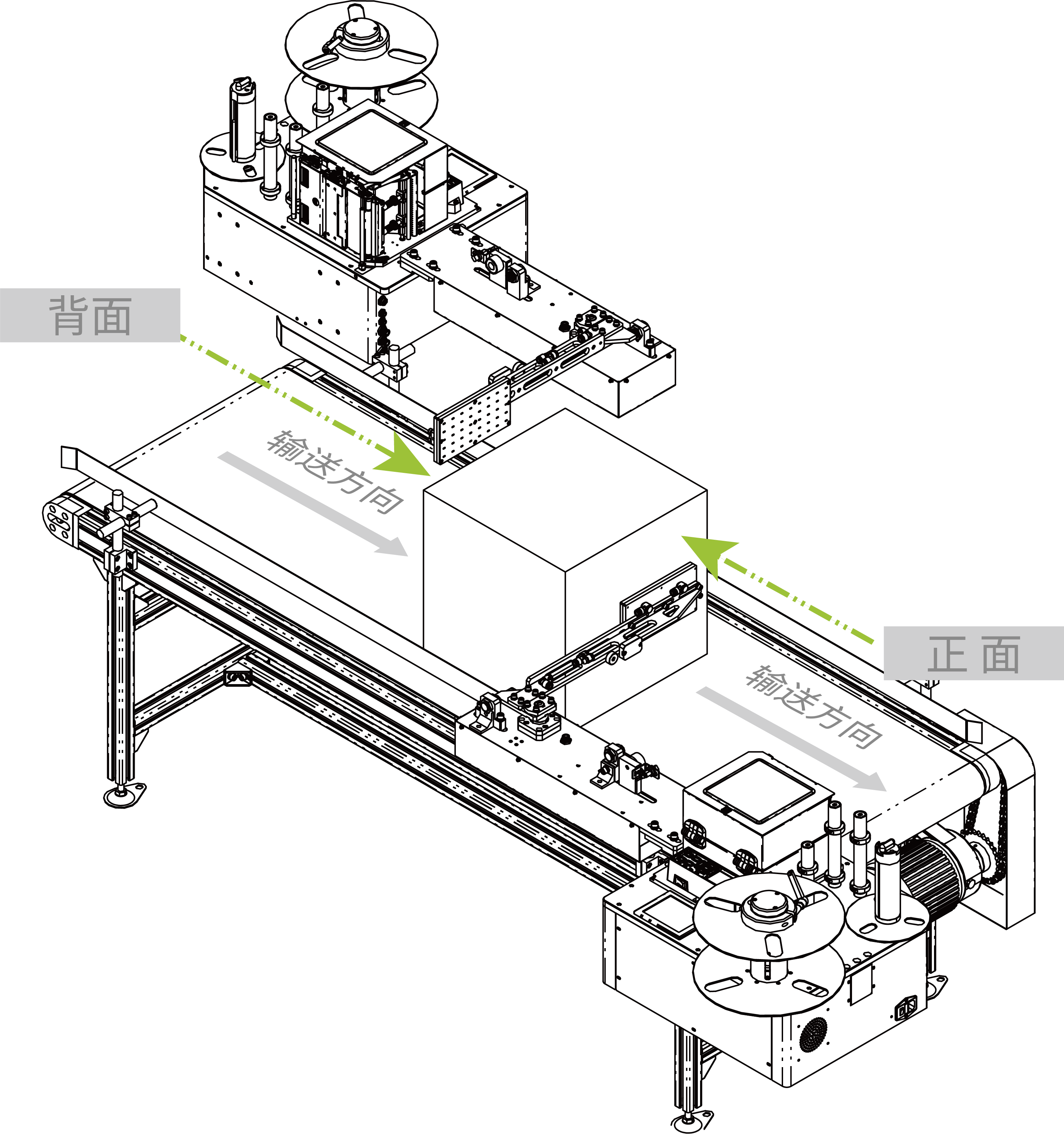

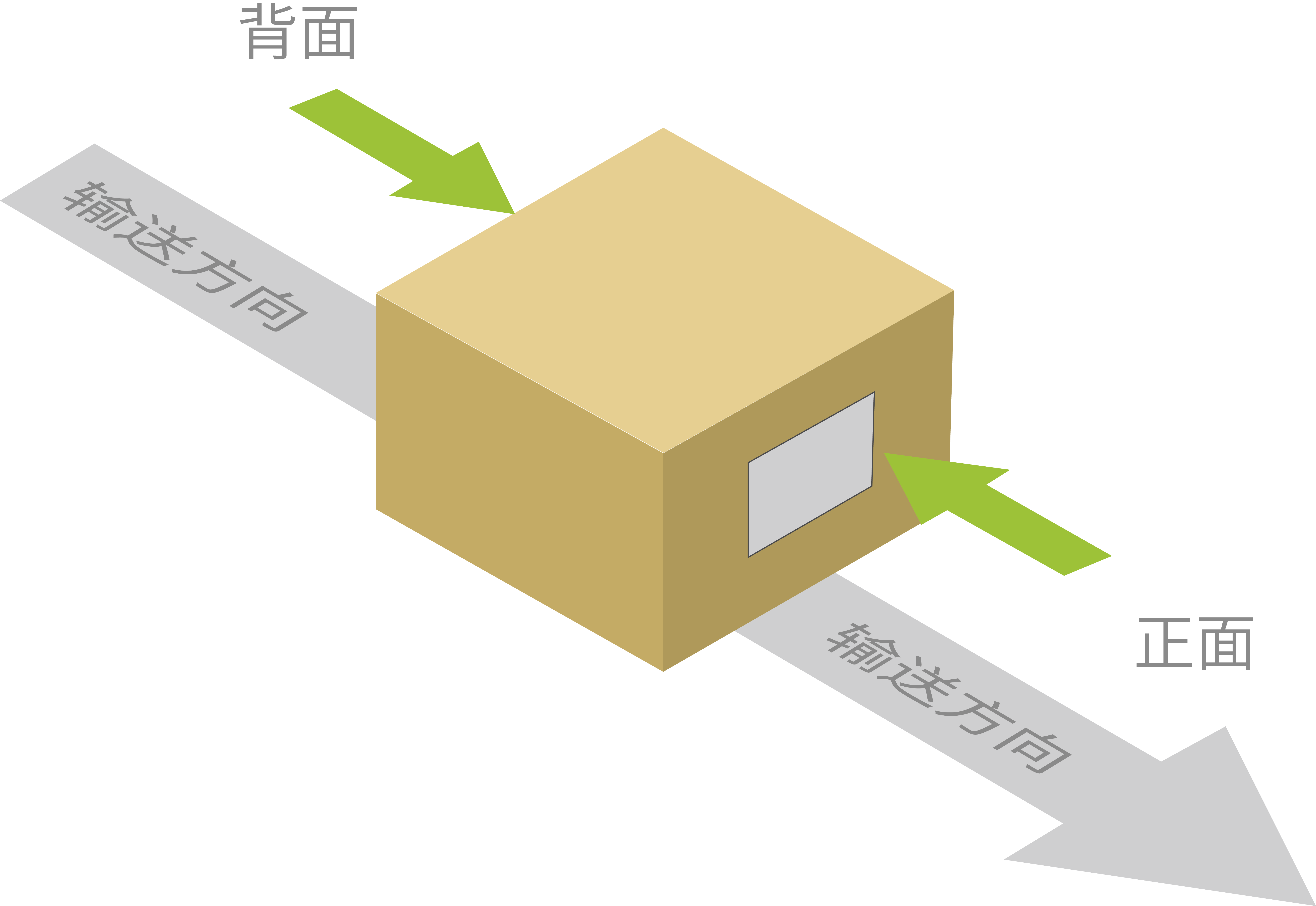

Corresponding labeling position of assembly line edge: | The equipment can be veneered: |

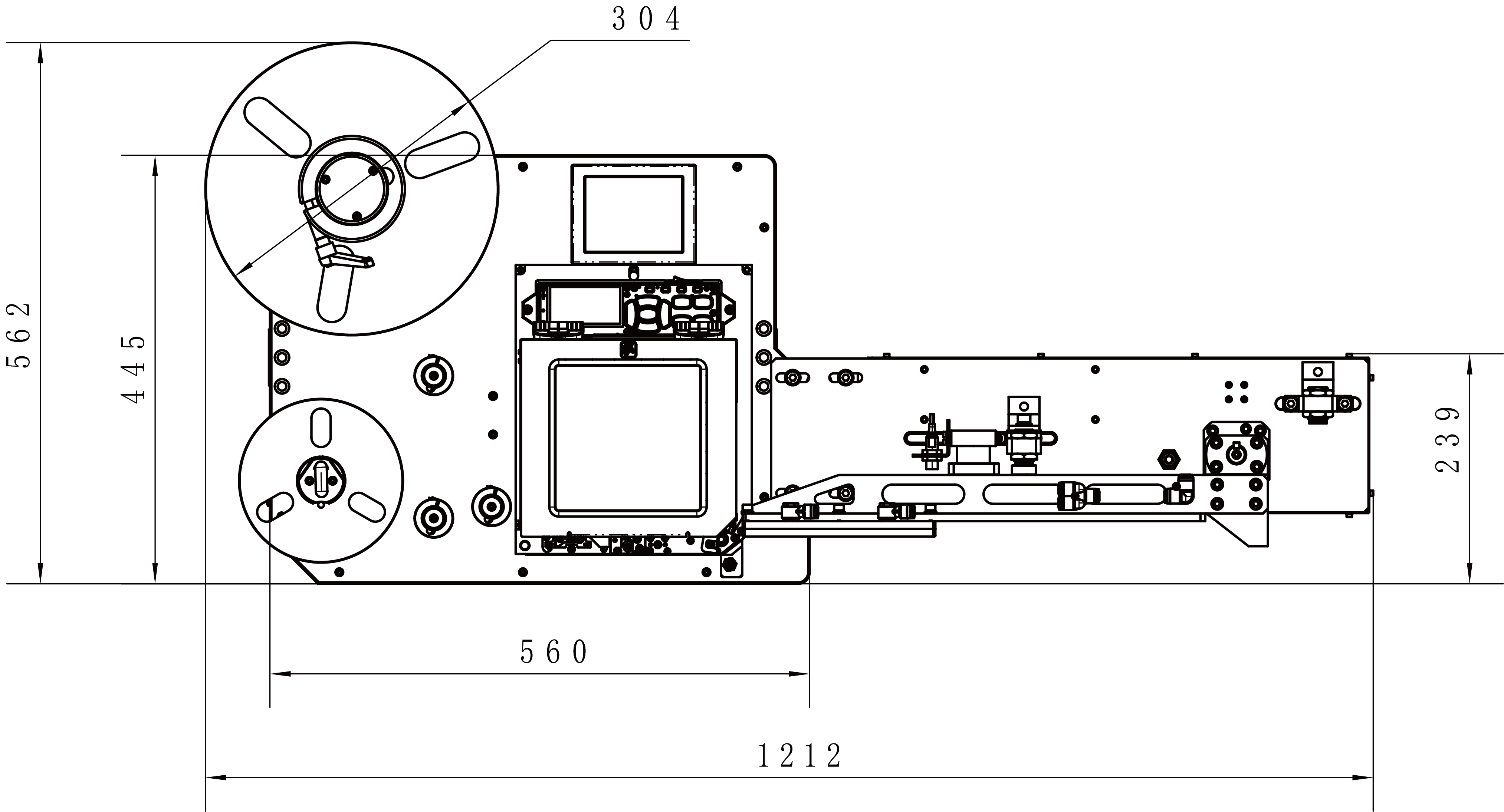

Installation and display: | Front size: |
| Swing Applicator：P54B、P74B Products can be realized in the direction of the front and back and side labeling The fastest is 20 sheets per minute |
Working state: Through the external sensor, I/O point input signal, control device printing label. The front, rear and side labeling positions can be freely selected upon request. | |
Corresponding labeling position of assembly line edge: | The equipment can be veneered: |
Installation and display: | Front size: |
| Labeling method： | Swing Applicator |
| Labeling arm model： | P54B、P74B |
| Labeling speed（or high-speed cylinders）： | 20 sheets/min |
| Labeling width： | Z500mm(customizable) |
| Labeling accuracy： | ±1mm |
| Size（fuselage+labeling arm）： | 1212*453.5*562mm |
| Weight： | 58KG |
Accuracy: ±0.5 mm
Accuracy: ±1 mm
Accuracy: ±2mm
Accuracy: ±1mm
Accuracy: ±1mm
Accuracy: ±0.7mm
Accuracy: ±0.5mm
