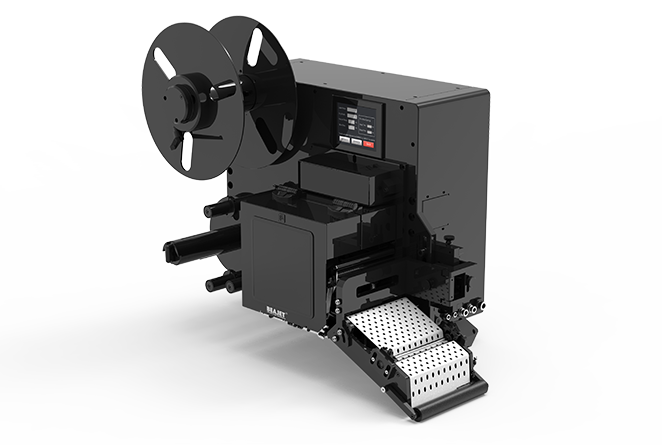

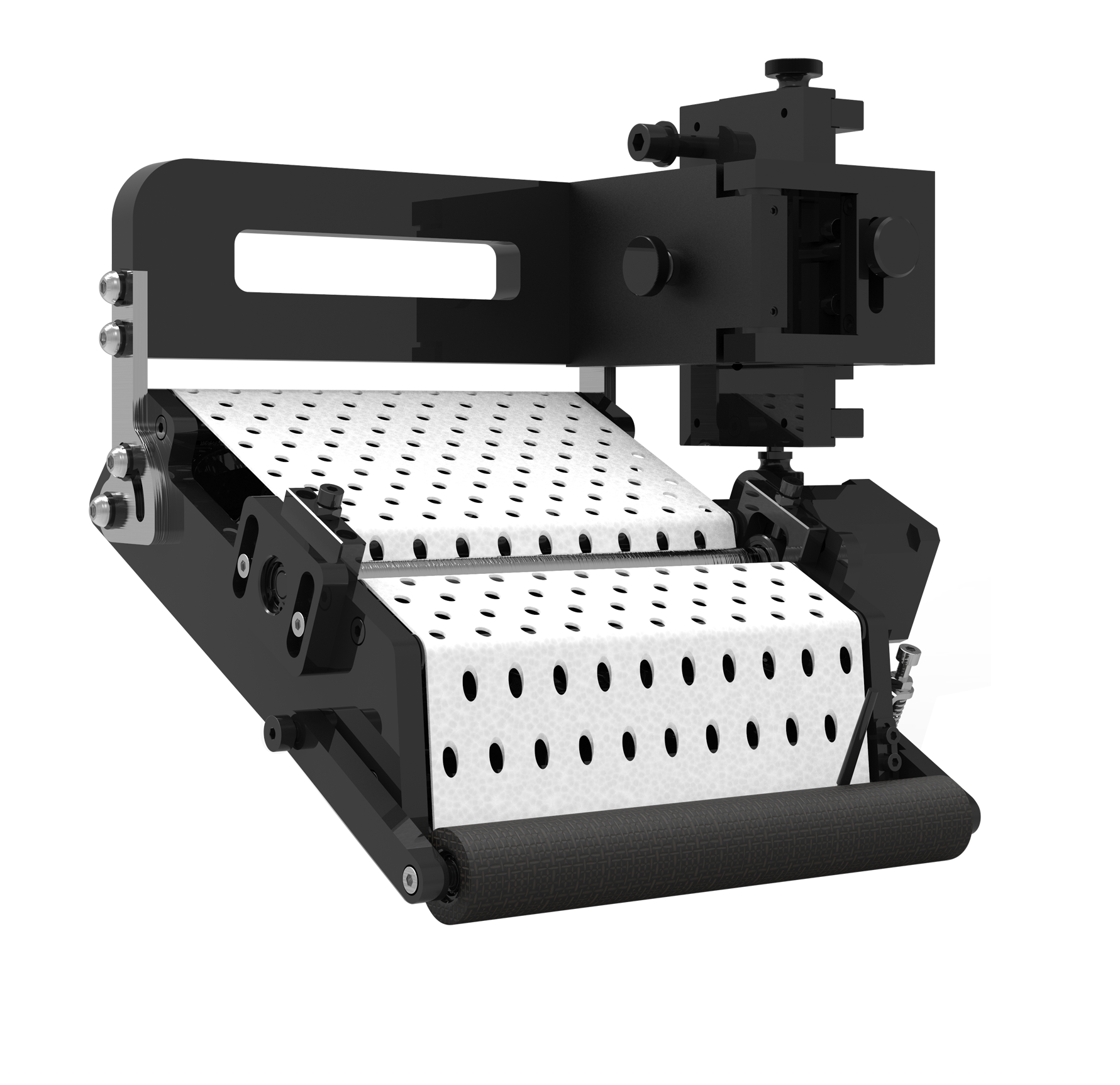

P54G/P74G Wipe Label Applicator
Fitting Description
Specifications
Applicable models
Fitting's video
Download

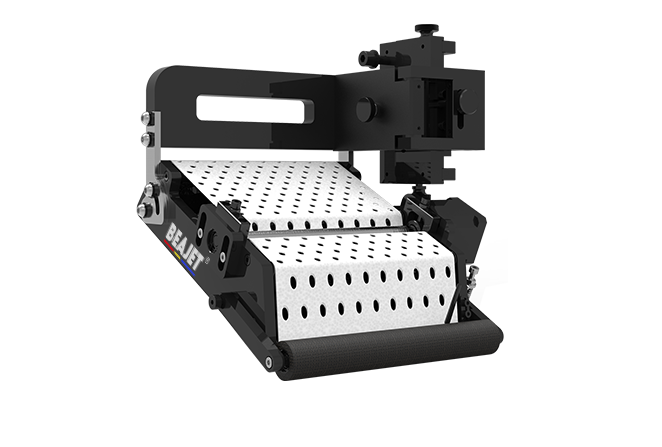

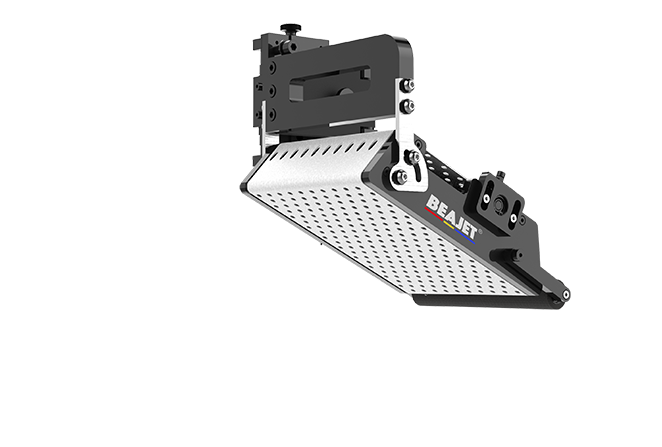

Other labeling arms
Fitting Description







                                               Roll paste:P54G、P74G：

                                                 It solves the pain point that the rolling paste on the market cannot achieve real-time printing labeling function

                                                 -- For labeling problems,The fastest labeling speed can reach 50 / min




Working Status:

              When the device receives the printing task, it will pre-print the label to the labeling position.

              When the product reaches the labeling position, the label conveyor belt is driven between them to attach the label to the attached itemThe surface.

              Through the external sensor, IO point input signal, control device printing and labeling.


















                                            Design of labeling：

                                                           Rolling labeling mode, so that the label seamless contact with various arcs, right angles

                                                           Special labeling head is usedOn the productPlay aGood insuranceProtective effect

                                                           The strong suction control of the fan ensures that the label is sucked smoothly on the label


                                            The equipment can be veneer:










High scalability:

       Modular design, you can customize various positions and radians to print labels:

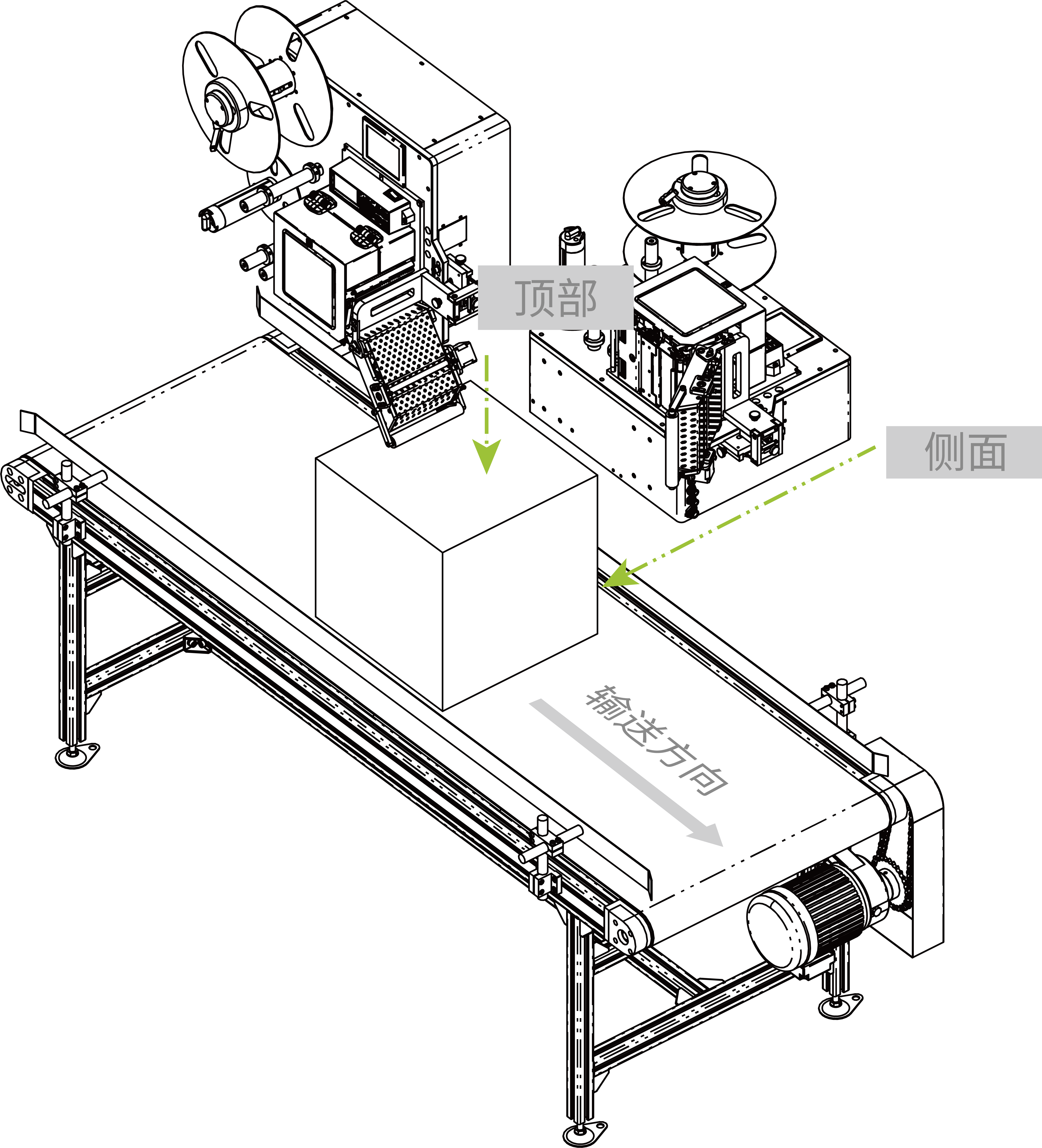

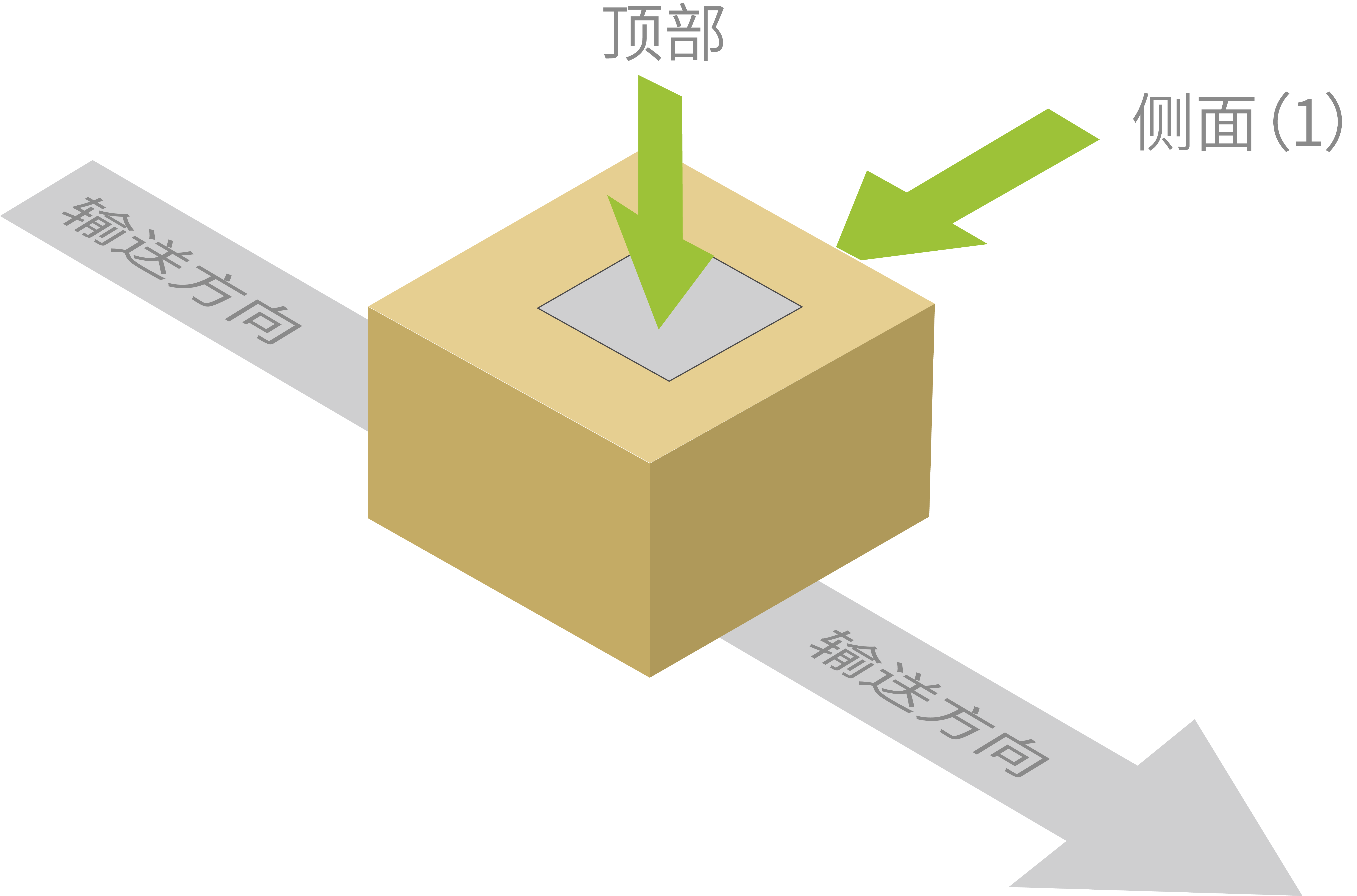

       Can meet the top surface, left and right side, front and back, right Angle labeling position requirements;

       Can be pasted on the plane, the outer surface of the arc, the inner surface of the arc, etc.














                                               Roll paste:P54G、P74G：

                                                 It solves the pain point that the rolling paste on the market cannot achieve real-time printing labeling function

                                                 -- For labeling problems,The fastest labeling speed can reach 50 / min




Working Status:

              When the device receives the printing task, it will pre-print the label to the labeling position.

              When the product reaches the labeling position, the label conveyor belt is driven between them to attach the label to the attached itemThe surface.

              Through the external sensor, IO point input signal, control device printing and labeling.


















                                            Design of labeling：

                                                           Rolling labeling mode, so that the label seamless contact with various arcs, right angles

                                                           Special labeling head is usedOn the productPlay aGood insuranceProtective effect

                                                           The strong suction control of the fan ensures that the label is sucked smoothly on the label


                                            The equipment can be veneer:










High scalability:

       Modular design, you can customize various positions and radians to print labels:

       Can meet the top surface, left and right side, front and back, right Angle labeling position requirements;

       Can be pasted on the plane, the outer surface of the arc, the inner surface of the arc, etc.








Specifications
 Labeling method：Wipe Label Applicator
 Labeling arm model：P54G、P74G
 Labeling speed（or high-speed cylinders）：50 sheets/min
 Labeling width：

100mm

 Labeling accuracy：±1mm

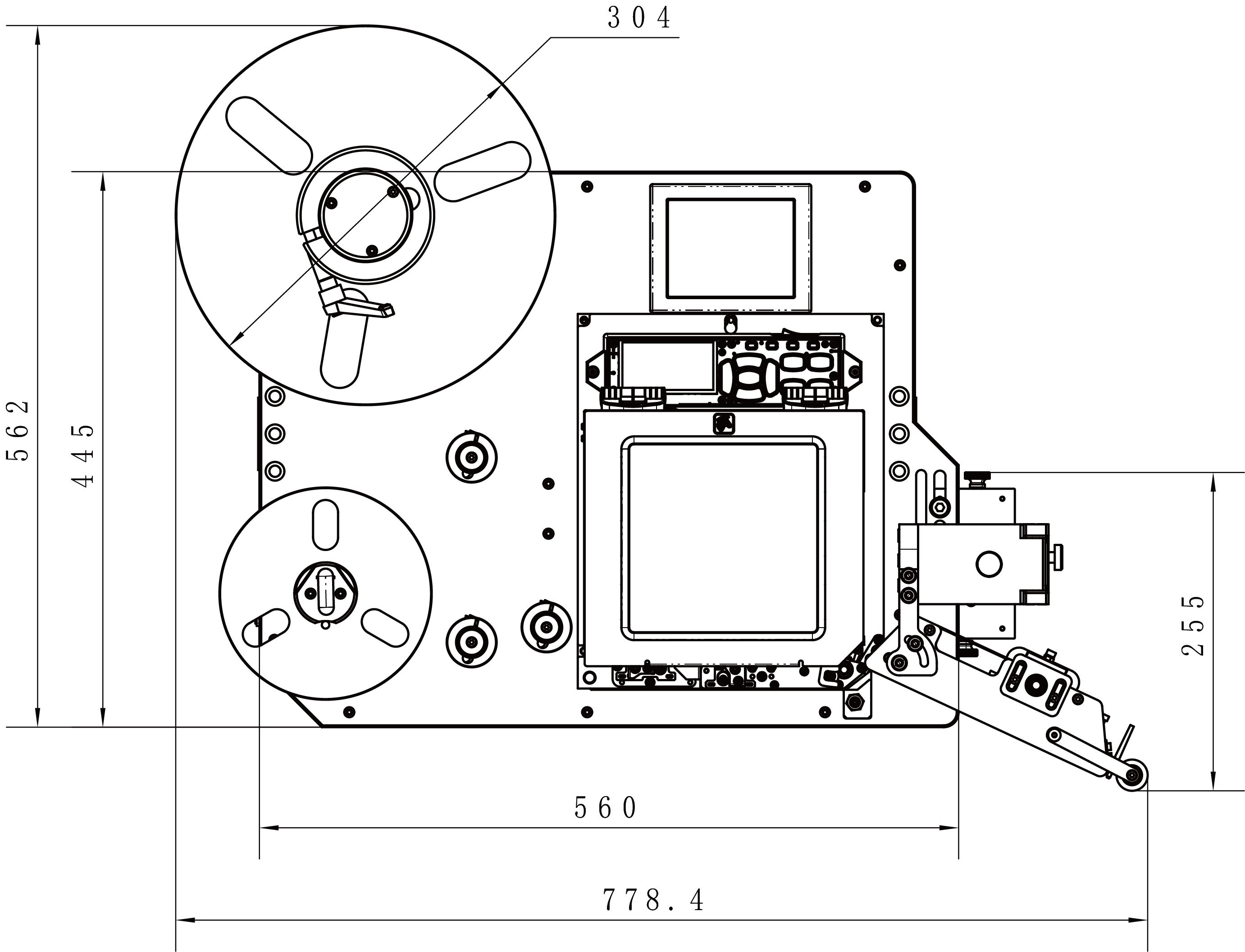

 Size（fuselage+labeling arm）：778.4*453.5*562mm
 Weight：56KG


Fitting's video

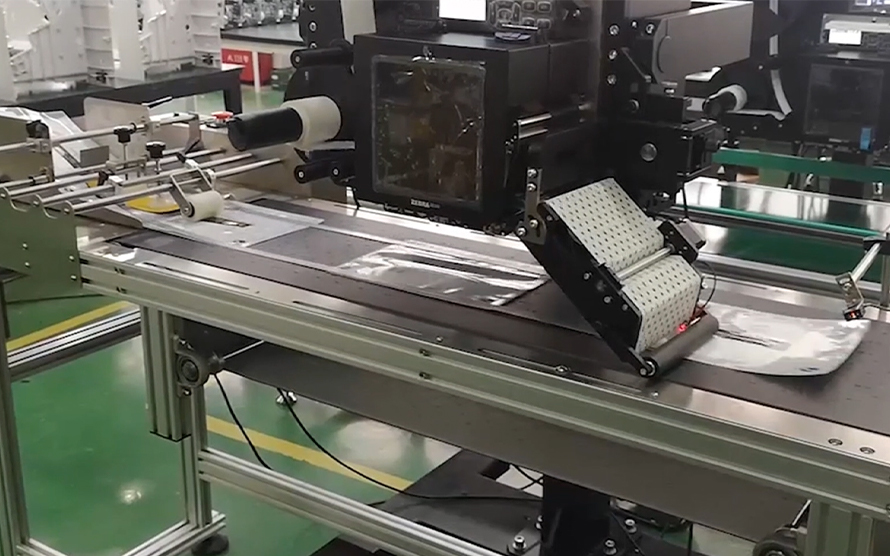

Chinese medicine bag printing labeling
Demand: Extra thin PE plastic bag packaging labeling / Solution: P54G roll paste / More cases can be seen in the application field ~
Running video

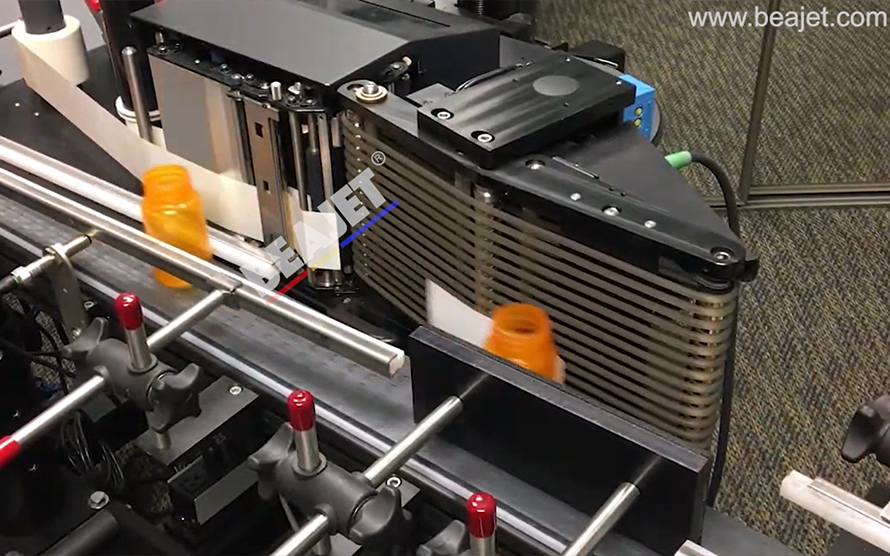

Round bottle printing label
Requirement: round bottle arc surface label/ Option: P54G rolling sticker/ For more cases, view the application field ~
Running video
Download
P54G-R3ZU-GR Printing labeling machine (underside fixed) Mounting dimensions.pdf
P54G-R3ZB-GR Printing and labeling machine (bracket fixed) Mounting dimensions.pdf
P54G-L3ZU-GL Printing label machine (left out bottom fixed) Mounting dimensions.pdf
P54G-L3ZB-GL Printing and labeling machine (left exit bracket fixed) Installation dimensions.pdf
